Topics

Review

• Expressions
• Evaluating an Expression
• Precedence
• Escape Sequences
• Control Structures
• Loops
• Code Blocks
• The ++ and -- Operators
• Order of Precedence for ++ and --

New Material

• The for loop
• Initializing the Loop Variable
• The Loop Test
• The Loop Update Statement
• The for Loop in Action
• for Loop Patterns
• Decreasing Loops
• Using the Loop Variable Only for Counting
• Indenting Java Code

Homework 3

Homework 3 is due this Sunday at 11:59 PM.

You will find the assignment here.

If you have a problem or a question, make a post on the Class Discussion Area.

Review

Expressions

• There are many different ways that we can get a value inside our code
• The value can be a literal
• The value can also be held inside a variable
• Or we can calculate the value using operators
• Each of these is an expression
• An expression is anything in Java that can be turned into a value
• At the moment you only know three types of expressions in Java
  • Literals
  • Variables
  • Calculations using operators
• There is a fourth expression type that we will meet in a future class

Evaluating an Expression

• The Java compiler processes the code statement by statement
• Each expression in a statement must be turned into a value
• This has to be done before the compiler can produce the bytecodes for the statement
• Turning an expression into a value is called evaluation
• Consider the following calculation

  (4 + x) / (4 - y)

• The operations inside the two parentheses must be evaluated first
• Then we can divide the two values
• So we have three separate evaluations of operators
  • Evaluation of (4 + x)
  • Evaluation of (4 - y)
  • Division of the results
• Using this technique you can build up very complicated expressions
• This poses no problems to the compiler
• It just finds the lowest level expressions and evaluates them
• Then it moves up to the next level
• And performs the operations specified there

Precedence

• Consider the following expression

  3 + 2 * 4

• This expression has two operators
• Which operation should be done first?
• If we do addition first we get

  3 + 2 = 5
  5 * 4 = 20

• But if we do multiplication first we get

  2 * 4 = 8
  3 + 8 = 11

• Java uses rules of precedence in situations like this
• The rules of precedence tell the compiler which operator to apply first
• Operators with higher precedence are used before operators of lower precedence
• For arithmetic operators there are two orders of precedence
• Operators that deal with multiplication and division
  •  *
  •  /
  •  %
  have the higher order of precedence
• Operators that deal with addition and subtraction
  •  +
  •  -
  have a lower order of precedence
• Parentheses always overrule the order of precedence
• If you are ever in doubt about how the compiler will evaluate an expression ...
• use parentheses

Escape Sequences

• There are a few unusual characters that require special treatment
• Because they cannot be written inside a string in the normal way
• There is a character called newline that makes the output go down to the next line
• This is the character you get when you hit Enter on a PC
• Or Return on a Mac
• But this won't work inside a string literal
• If you want to use these or other troublesome characters you have to use an escape sequence
• An escape sequence is a set of two characters
• The first of which is a backslash,  \
• Here is a list

  Sequence	Represents
  \t	tab character
  \n	new line character
  \"	double quote
  \\	backslash

Control Structures

• When the interpreter run a script it goes through the code statement by statement
• The order in which it executes the statements is call the flow of control
• Or the path of execution
• Control structures allow the interpreter to take different paths through the code
• There are two types of control structures in Java
  • Loops
  • Branches or Conditionals

Loops

• There are two kinds of loops in Java
  • Loops controlled by counting
  • Loops controlled by some condition
• Loops controlled by counting are sometimes called definite loops
• Loops controlled by a condition are sometimes called indefinite loops
• All loops are composed of two parts
  • A loop header
  • A loop body
• The loop header is a single line at the top of the loop
• It controls how many times the loop runs
• The loop body are the statements that are executed with each pass through the loop
• Each pass through the loop body is an iteration

Code Blocks

• The loop body is an example of a code block
• Code blocks are a group of statements that are only executed under certain conditions
• In Java code blocks are contained between left curly brace, {
• And a right curly brace, }
• Every { must be followed by a matching }
• Or you will get an error
• You should indent the statements inside a code block
• The compiler won't care
• But it will make your code more readable
• And readable code is easier to fix when you get an error

The ++ and -- Operators

• ++ adds 1 the value of the variable it is placed next too
• -- subtracts 1 from its variable
• Adding 1 to the value of a variable is called incrementing
• Subtracting 1 from the value of a variable is called decrementing

Order of Precedence for ++ and --

• Here is how the ++ and -- fit into the precedence hierarchy

  Description	Operators
  unary operators	––   –
  multiplicative operators	/   %
  additive operators	–
  assignment operators	+=   *=   %=

New Material

The for loop

• The most frequently used loop is the for loop
• The for loop is a definite loop
• Because we specify how many times it loops
• We specify it in the loop header
• The loop header controls the loop
• It does this by specifying how many times the loop will run
• The header of the for loop has the following format


  for (INITIALIZATION; LOOP_TEST; UPDATE)

• The parentheses contains three separate statements
• Which must be separated by semicolons
• If you leave out the semicolons you will get an error
• This is followed by the loop_body
• Which contains the statements that are run with each pass through the loop
• The loop body is inclosed in curly braces, { }
• And should be indented

Initializing the Loop Variable

• The first statement in the loop header initializes a variable that controls the loop
• It is called the loop variable
• Also known at the control variable
• This variable must be an integer
• Because it counts how many times the loop body is run
• The initialization gives the loop variable it's first value
• Which is often 0 or 1
• Here is an example

  int i = 1;

• This variable can have any name you want
• But it is traditional to use i, j or k
• This statement is only executed once
• And that happens before entering the loop

The Loop Test

• The second statement in the loop header determines how many times the loop runs
• It is a boolean expression which test the loop variable
• As long as this expression is true the loop will run
• A for loop stops when the test becomes false
• Usually the expression is true as long as the loop variable is less than some value
• Here is an example

  i <= 5;

The Loop Update Statement

• If the loop variable does not change, the loop will go on forever
• The update statement makes sure this does not happen
• The this statement changes the value of the control variable
• This happens after the statements in the loop body have been run
• But before the loop test is run
• The most common update is to add 1 to the loop variable
• Usually this is done using the ++ operator
• Here is an example


  i++

The for Loop in Action

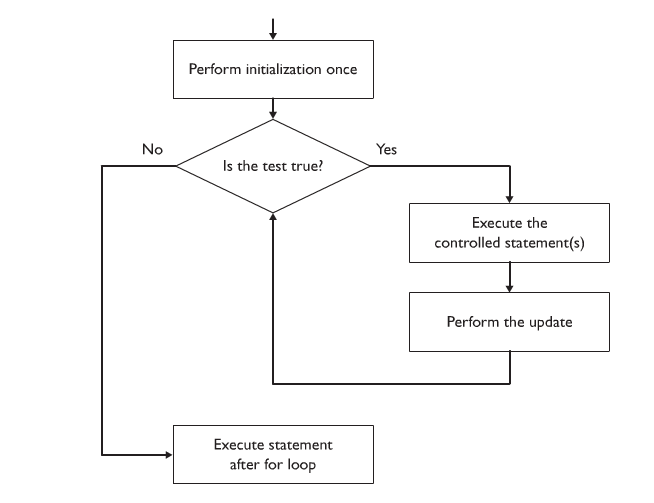

• Here is the flow chart for a for loop

• First we give the control variable its starting value
• This happens only once
• Then the loop test is run
• If the loop returns true all the statement in the loop body are run
• After the last statement in the loop body, the update statement is run
• Then we run the loop test again
• If the result is true, we run the statements in the loop body again
• If not, we jump out of the loop
• And run the first statement after the loop

for Loop Patterns

• The three statements in the loop header can be written many ways
• But some patterns are more common than others
• The most common for loop pattern is the following


  for (int  VARIABLE_NAME = 1;  VARIABLE_NAME  <= LIMIT;  VARIABLE_NAME++)  {
      STATEMENT;
      ...
  }

• This loop starts with the control variable set to 1
• And executes the statements contained in the loop body LIMIT times
• The following code

  for (int i = 1;  i <= 10;  i++)  {
      System.out.print(i + "  ") ;
  }

• Will produce this output

  1 2 3 4 5 6 7 8 9 10

• Sometimes it is more convenient to start counting from 0 instead of one
• Here is the pattern


  for (int  VARIABLE_NAME  = 0;  VARIABLE_NAME  <  LIMIT;  VARIABLE_NAME++)  {
      STATEMENT;
      ...
  }

• There are two differences between this pattern and the previous one
  • The loop variable is initialized to 0 instead of 1
  • And the loop test uses < instead of <=

Decreasing Loops

• Usually the update statement increases the value of the loop variable
• But you can also run a for loop backwards
• Here the the pattern for a decrementing loop


  for (int  VARIABLE_NAME  = HIGH_AVLUE;  VARIABLE_NAME  >= LOW_VALUE;  VARIABLE_NAME--) {
      STATEMENT;
      ...
  }

• Let's look at an example

  for (int i = 10;  i >= 1;  i--)  {
      System.out.print(i + "  ") ;
  }

• It prints the following

  10 9 8 7 6 5 4 3 2  1

Using the Loop Variable Only for Counting

• The primary purpose of the loop variable is determine how many times the loop runs
• But often we use the value of the loop variable in the loop body
• Here is an example

  public class Squares {
      public static void main(String[ ]  args)  {
          for (int i = 1;  i <= 5;  i++)  {
              System.out.println(i + "  squared = "  + (i * i) ) ;
          }
      }
  }

• Running this program we get

  $ java Squares
  1  squared = 1
  2  squared = 4
  3  squared = 9
  4  squared = 16
  5  squared = 25

• But sometimes you don't use the value of the loop variable
• Here is an example

  public class GoSox {
      public static void main(String[ ]  args)  {
          for (int i = 1; i <= 5; i++){
              System.out.println("Go Sox!");
          }
      }
  }

• This is what we get when we run it

  $ java GoSox
  Go Sox!
  Go Sox!
  Go Sox!
  Go Sox!
  Go Sox!

Indenting Java Code

• Look at the code above
• There are three sets of curly braces
• The line after each { is indented
• That is to make it obvious to the reader that a new code block has begun
• I did not have to do this
• javac does not require it
• As long as a Java program is correct the compiler will not complain
• But compilers aren't the only ones looking at Java source code files
• People have to read them too
• Two types of people have to read Java programs
  • The people who write them
  • The people who maintain them
• Compare the code above

  public class GoSox {
      public static void main(String[ ]  args)  {
          for (int i = 1; i <= 5; i++){
              System.out.println("Go Sox!");
          }
      }
  }

• With this

  public class GoSox2 {public static void main(String[ ] args) {for (int i = 1; i <= 5; i++){System.out.println("Go Sox!");}}}

• javac will compile both
• And they both produce the same output
• But which one would you rather read?
• Or debug if it did not compile?
